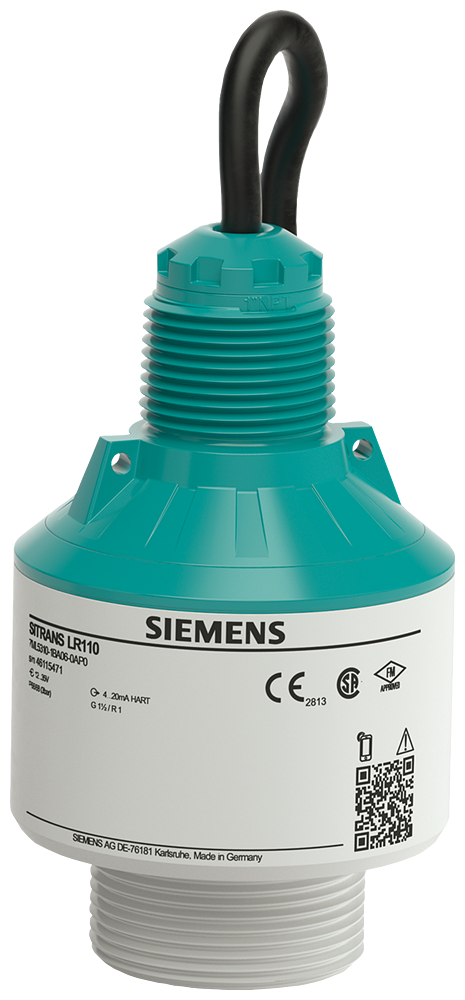

SITRANS LR110 Rader

Measuring range: 0 ... 15 m
Accuracy:
±2 mm (range 0.25 ... 15 m)
±10 mm (range 0 ... 0.25 m)
Beam angle: 8°
Power supply (Modbus): 8 ... 30 VDC
Power supply (HART): 12 ... 35 VDC
Degree of protection: IP66/IP68
Temperature range (ambient/process): -40 ... +80 °C (-40 ... +176 °F)
Programming: SITRANS mobile IQ App (Bluetooth)

Cable length
- 5 m
- 10 m
- 30 m
- 50 m
Communication
- Modbus RS485
- HART (4 ... 20 mA)
ATEX
- Non-ATEX
- ATEX Zone 1/20

This combination does not exist.

Rader

Internal Reference: 1006469
