Water Level Meter

Measuring range: 0 ... 8 m
Accuracy: ±5 mm
Beam angle: 8°
Power supply: 12 ... 35 VDC
Temperature range (ambient/process): -40 ... +60 °C (-40 ... +140 °F)
Programming: SITRANS mobile IQ App (Bluetooth)

Measuring range: 0 ... 15 m
Accuracy:
±2 mm (range 0.25 ... 15 m)
±10 mm (range 0 ... 0.25 m)
Beam angle: 8°
Power supply (Modbus): 8 ... 30 VDC
Power supply (HART): 12 ... 35 VDC
Degree of protection: IP66/IP68
Temperature range (ambient/process): -40 ... +80 °C (-40 ... +176 °F)
Programming: SITRANS mobile IQ App (Bluetooth)

Measuring range: 0 ... 30 m
Accuracy:
±2 mm (range 0.25 ... 30 m)
±10 mm (range 0 ... 0.25 m)
Beam angle: 4°
Power supply (Modbus): 8 ... 30 VDC
Power supply (HART): 12 ... 35 VDC
Degree of protection: IP66/IP68
Temperature range (ambient/process): -40 ... +80 °C (-40 ... +176 °F)
Programming: SITRANS mobile IQ App (Bluetooth)

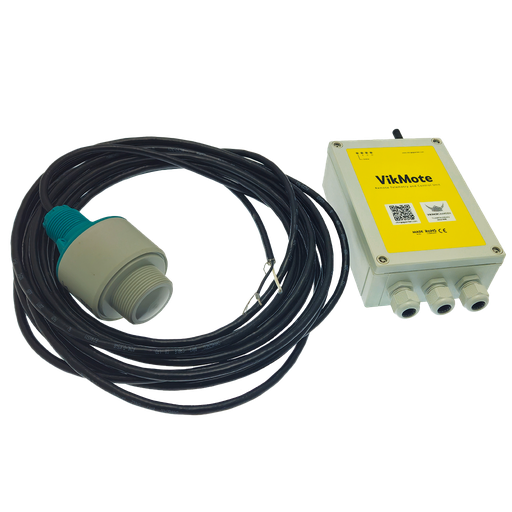

-Quantity: 1 pc
-Product type: Water level meter
-Measurement principle: Radar-based
-Connectivity: GSM
-Platform: Emiko Platform
-Integration: Powered by Emiko
-Data access: Live and historical data
-Application: Designed for professional maritime and climate monitoring use

Mounting bracket for installing the OceanWatcher ML sensor on a flat or horizontal surface.

Mounting bracket for installing the OceanWatcher ML sensor on a wall or vertical surface.

Protective cover for the OceanWatcher ML radar. Mounted on wall or base bracket to shield the sensor from weather and visibility.

Pipe nut in acid-resistant stainless steel A4. Fits threaded pipe.
